[C#] [공공데이터] 환율 정보 가져 오기 예제...

* C# 한국 수출입 은행 공공데이터를 이용한 환율 정보 가져 오기 예제...

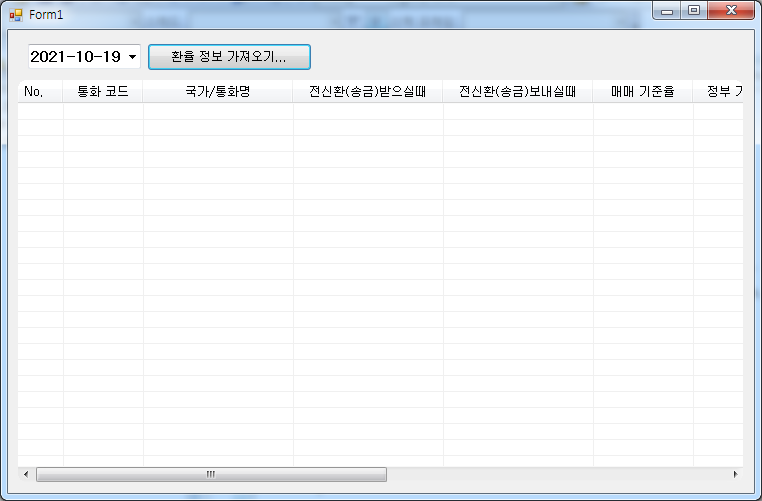

Main

- 사용한 컨트롤 : DateTimepicker 1개, Button 1개, Listview 1개



전체 소스 코드

Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;

using System.Net;
using System.Runtime.InteropServices;
using System.Net.Json;
using System.IO;

namespace CSharp_ExchangeRate
{
    public partial class Form1 : Form
    {
        [DllImport("gdi32.dll")]
        private static extern IntPtr CreateRoundRectRgn(int x1, int y1, int x2, int y2, int cx, int cy);
        [DllImport("user32.dll")]
        private static extern int SetWindowRgn(IntPtr hWnd, IntPtr hRgn, bool bRedraw);


        public Form1()
        {
            InitializeComponent();

            dtp.Value = DateTime.Now;
            SetRoundControl(15, listView1);

        }
        private void Form1_Resize(object sender, EventArgs e)
        {
            SetRoundControl(15, listView1);
        }

        private void SetRoundControl(int iValue, Control ct)
        {
            IntPtr ip = CreateRoundRectRgn(0, 0, ct.Width, ct.Height, iValue, iValue);
            int i = SetWindowRgn(ct.Handle, ip, true);
        }

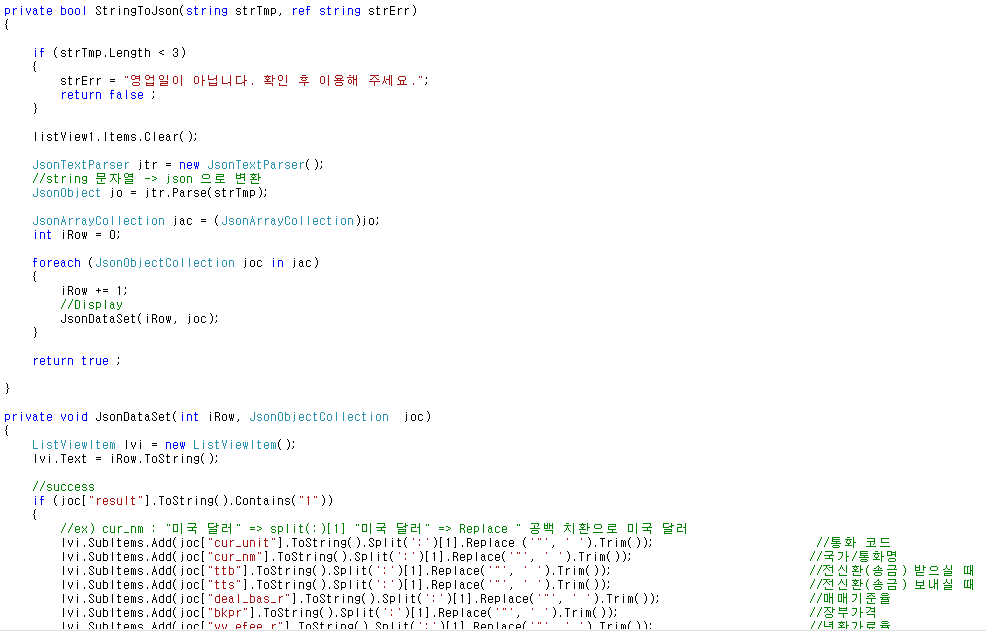

        private bool StringToJson(string strTmp, ref string strErr)
        {

            if (strTmp.Length < 3)
            {
                strErr = "영업일이 아닙니다. 확인 후 이용해 주세요.";
                return false ;
            }

            listView1.Items.Clear();

            JsonTextParser jtr = new JsonTextParser();
            //string 문자열 -> json 으로 변환
            JsonObject jo = jtr.Parse(strTmp);

            JsonArrayCollection jac = (JsonArrayCollection)jo;
            int iRow = 0;

            foreach (JsonObjectCollection joc in jac)
            {
                iRow += 1;
                //Display
                JsonDataSet(iRow, joc);
            }

            return true ;

        }

        private void JsonDataSet(int iRow, JsonObjectCollection  joc)
        {
            ListViewItem lvi = new ListViewItem();
            lvi.Text = iRow.ToString();

            //success
            if (joc["result"].ToString().Contains("1"))
            {
                //ex) cur_nm : "미국 달러" => split(:)[1] "미국 달러" => Replace " 공백 치환으로 미국 달러
                lvi.SubItems.Add(joc["cur_unit"].ToString().Split(':')[1].Replace ('"', ' ').Trim());                       //통화 코드
                lvi.SubItems.Add(joc["cur_nm"].ToString().Split(':')[1].Replace('"', ' ').Trim());                         //국가/통화명
                lvi.SubItems.Add(joc["ttb"].ToString().Split(':')[1].Replace('"', ' ').Trim());                            //전신환(송금) 받으실 때
                lvi.SubItems.Add(joc["tts"].ToString().Split(':')[1].Replace('"', ' ').Trim());                            //전신환(송금) 보내실 때
                lvi.SubItems.Add(joc["deal_bas_r"].ToString().Split(':')[1].Replace('"', ' ').Trim());                     //매매기준율
                lvi.SubItems.Add(joc["bkpr"].ToString().Split(':')[1].Replace('"', ' ').Trim());                           //장부가격
                lvi.SubItems.Add(joc["yy_efee_r"].ToString().Split(':')[1].Replace('"', ' ').Trim());                      //년환가료율
                lvi.SubItems.Add(joc["ten_dd_efee_r"].ToString().Split(':')[1].Replace('"', ' ').Trim());                  //10일 환가료율
                lvi.SubItems.Add(joc["kftc_deal_bas_r"].ToString().Split(':')[1].Replace('"', ' ').Trim());                //서울 외국환중개 매매기준율
                lvi.SubItems.Add(joc["kftc_bkpr"].ToString().Split(':')[1].Replace('"', ' ').Trim());                      //서울 외국환중개 장부 가격

                listView1.Items.Add(lvi);
            }

        }


        private void button1_Click(object sender, EventArgs e)
        {
            //AP01 : 환율, AP02 : 대출금리, AP03 : 국제금리
            //ex) 2015-01-01, 20150101, (DEFAULT)현재일
            //(요청) https://www.koreaexim.go.kr/site/program/financial/exchangeJSON?authkey=AUTHKEY1234567890&searchdate=20180102&data=AP01
            //(응답) [{"result":1,"cur_unit":"AED","ttb":"288.78","tts":"294.61","deal_bas_r":"291.7","bkpr":"291"
            //        ,"yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"291","kftc_deal_bas_r":"291.7"
            //        ,"cur_nm":"아랍에미리트 디르함"},"result":1,"cur_unit":"ATS","ttb":"0","tts":"0"
            //        ,"deal_bas_r":"93.52","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0"
            //        ,"kftc_deal_bas_r":"93.52","cur_nm":"오스트리아 실링"},{"result":1,"cur_unit":"AUD","ttb":"827.91","tts":"844.64","deal_bas_r":"836.28","bkpr":"836","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"836","kftc_deal_bas_r":"836.28","cur_nm":"호주 달러"},{"result":1,"cur_unit":"BEF","ttb":"0","tts":"0","deal_bas_r":"31.9","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"31.9","cur_nm":"벨기에 프랑"},{"result":1,"cur_unit":"BHD","ttb":"2,811.48","tts":"2,868.27","deal_bas_r":"2,839.88","bkpr":"2,839","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"2,839","kftc_deal_bas_r":"2,839.88","cur_nm":"바레인 디나르"},{"result":1,"cur_unit":"CAD","ttb":"844.72","tts":"861.79","deal_bas_r":"853.26","bkpr":"853","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"853","kftc_deal_bas_r":"853.26","cur_nm":"캐나다 달러"},{"result":1,"cur_unit":"CHF","ttb":"1,088.44","tts":"1,110.43","deal_bas_r":"1,099.44","bkpr":"1,099","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"1,099","kftc_deal_bas_r":"1,099.44","cur_nm":"스위스 프랑"},{"result":1,"cur_unit":"CNH","ttb":"162.01","tts":"165.28","deal_bas_r":"163.65","bkpr":"163","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"163","kftc_deal_bas_r":"163.65","cur_nm":"위안화"},{"result":1,"cur_unit":"DEM","ttb":"0","tts":"0","deal_bas_r":"657.98","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"657.98","cur_nm":"독일 마르크"},{"result":1,"cur_unit":"DKK","ttb":"171.14","tts":"174.59","deal_bas_r":"172.87","bkpr":"172","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"172","kftc_deal_bas_r":"172.87","cur_nm":"덴마아크 크로네"},{"result":1,"cur_unit":"ESP(100)","ttb":"0","tts":"0","deal_bas_r":"773","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"773","cur_nm":"스페인 페세타"},{"result":1,"cur_unit":"EUR","ttb":"1,274.04","tts":"1,299.77","deal_bas_r":"1,286.91","bkpr":"1,286","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"1,286","kftc_deal_bas_r":"1,286.91","cur_nm":"유로"},{"result":1,"cur_unit":"FIM","ttb":"0","tts":"0","deal_bas_r":"216.44","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"216.44","cur_nm":"핀란드 마르카"},{"result":1,"cur_unit":"FRF","ttb":"0","tts":"0","deal_bas_r":"196.18","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"196.18","cur_nm":"프랑스 프랑"},{"result":1,"cur_unit":"GBP","ttb":"1,432.82","tts":"1,461.77","deal_bas_r":"1,447.3","bkpr":"1,447","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"1,447","kftc_deal_bas_r":"1,447.3","cur_nm":"영국 파운드"},{"result":1,"cur_unit":"HKD","ttb":"135.75","tts":"138.5","deal_bas_r":"137.13","bkpr":"137","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"137","kftc_deal_bas_r":"137.13","cur_nm":"홍콩 달러"},{"result":1,"cur_unit":"IDR(100)","ttb":"7.82","tts":"7.97","deal_bas_r":"7.9","bkpr":"7","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"7","kftc_deal_bas_r":"7.9","cur_nm":"인도네시아 루피아"},{"result":1,"cur_unit":"ITL(100)","ttb":"0","tts":"0","deal_bas_r":"66.46","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"66.46","cur_nm":"이태리 리라"},{"result":1,"cur_unit":"JPY(100)","ttb":"941.53","tts":"960.56","deal_bas_r":"951.05","bkpr":"951","yy_efee_r":"0.96833","ten_dd_efee_r":"0.0242","kftc_bkpr":"951","kftc_deal_bas_r":"951.05","cur_nm":"일본 옌"},{"result":1,"cur_unit":"KRW","ttb":"0","tts":"0","deal_bas_r":"1","bkpr":"1","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"1","kftc_deal_bas_r":"1","cur_nm":"한국 원"},{"result":1,"cur_unit":"KWD","ttb":"3,509.87","tts":"3,580.78","deal_bas_r":"3,545.33","bkpr":"3,545","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"3,545","kftc_deal_bas_r":"3,545.33","cur_nm":"쿠웨이트 디나르"},{"result":1,"cur_unit":"MYR","ttb":"262.09","tts":"267.38","deal_bas_r":"264.74","bkpr":"264","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"264","kftc_deal_bas_r":"264.74","cur_nm":"말레이지아 링기트"},{"result":1,"cur_unit":"NLG","ttb":"0","tts":"0","deal_bas_r":"583.97","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"583.97","cur_nm":"네델란드 길더"},{"result":1,"cur_unit":"NOK","ttb":"129.44","tts":"132.05","deal_bas_r":"130.75","bkpr":"130","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"130","kftc_deal_bas_r":"130.75","cur_nm":"노르웨이 크로네"},{"result":1,"cur_unit":"NZD","ttb":"752.76","tts":"767.97","deal_bas_r":"760.37","bkpr":"760","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"760","kftc_deal_bas_r":"760.37","cur_nm":"뉴질랜드 달러"},{"result":1,"cur_unit":"SAR","ttb":"282.84","tts":"288.55","deal_bas_r":"285.7","bkpr":"285","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"285","kftc_deal_bas_r":"285.7","cur_nm":"사우디 리얄"},{"result":1,"cur_unit":"SEK","ttb":"129.3","tts":"131.91","deal_bas_r":"130.61","bkpr":"130","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"130","kftc_deal_bas_r":"130.61","cur_nm":"스웨덴 크로나"},{"result":1,"cur_unit":"SGD","ttb":"793.06","tts":"809.09","deal_bas_r":"801.08","bkpr":"801","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"801","kftc_deal_bas_r":"801.08","cur_nm":"싱가포르 달러"},{"result":1,"cur_unit":"THB","ttb":"32.57","tts":"33.22","deal_bas_r":"32.9","bkpr":"32","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"32","kftc_deal_bas_r":"32.9","cur_nm":"태국 바트"},{"result":1,"cur_unit":"USD","ttb":"1,056.23","tts":"1,077.56","deal_bas_r":"1,066.9","bkpr":"1,066","yy_efee_r":"2.69465","ten_dd_efee_r":"0.07485","kftc_bkpr":"1,071","kftc_deal_bas_r":"1,071.4","cur_nm":"미국 달러"},{"result":1,"cur_unit":"XOF","ttb":"0","tts":"0","deal_bas_r":"1.9618","bkpr":"0","yy_efee_r":"0","ten_dd_efee_r":"0","kftc_bkpr":"0","kftc_deal_bas_r":"1.9618","cur_nm":"씨에프에이 프랑(비씨에이오)"}]

            string strURL = "https://www.koreaexim.go.kr/site/program/financial/exchangeJSON?authkey=" +
                            "SerialKey Input&searchdate=" +
                            dtp.Value.ToString("yyyyMMdd") + "&data=" +
                            "AP01";

            HttpWebRequest hwr = (HttpWebRequest)WebRequest.Create(strURL);
            hwr.ContentType = "application/json";
            //hwr.Method = "GET";

            using (HttpWebResponse hwrResult = hwr.GetResponse() as HttpWebResponse)
            {
                Stream sr = hwrResult.GetResponseStream();
                //JSON 파싱...
                using (StreamReader srd = new StreamReader(sr))
                {
                    string strResult = srd.ReadToEnd();
                    string strErr = "";
                    if (!StringToJson(strResult, ref strErr))
                    {
                        MessageBox.Show(strErr, "확 인" , MessageBoxButtons.OK, MessageBoxIcon.Asterisk);
                    }
                }//using StreamReader

                sr.Close();
                hwrResult.Close();

            }//using HttpWebResponse

        }


    }
}

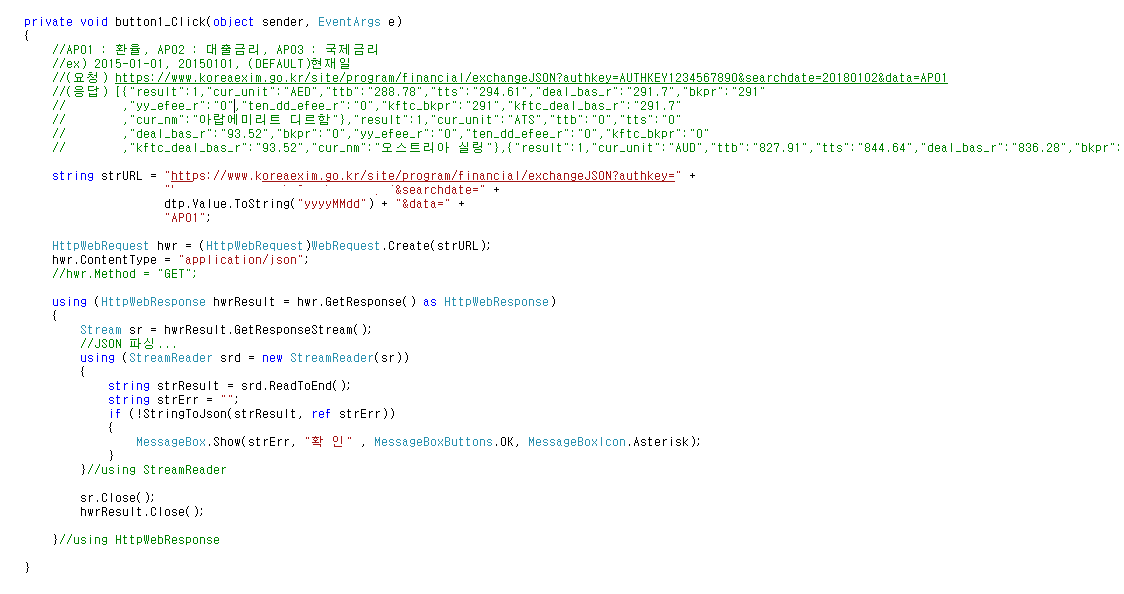

아래의 그림과 같이 Button Click Event 를 살펴 보면

strURL 부분의 지워진 부분은 각자 한국 수출입 은행에서 받은 인증키를 입력 하면 됩니다.

https://kdsoft-zeros.tistory.com/247

[C#] [공공데이터] 한국 수출입 은행 Open API 사용하기전 가입 신청...

인증키를 입력 후 한국수출입은행 응답을 보면 주석에서 보는거와 같이 Json 형태로 응답이 오게

됩니다.



https://kdsoft-zeros.tistory.com/97

[C#] Json File Write & Read 예제

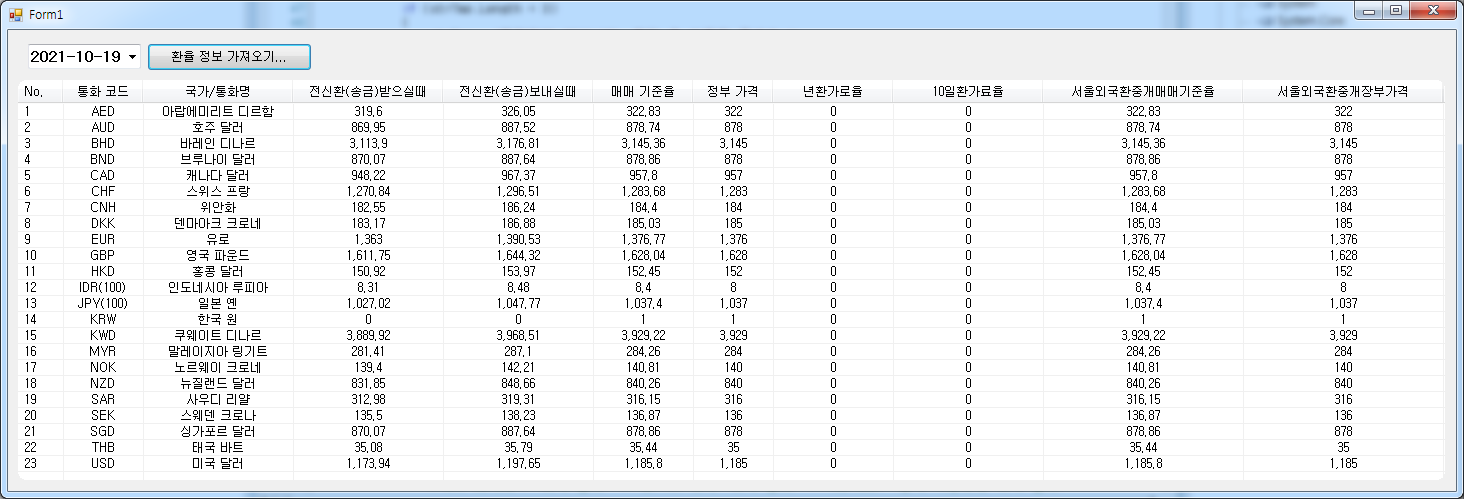

* 예제 결과



Result
