[VBNET] 이미지 밝기 조절(Image Brightness)

* VBNET 이미지 밝기 조절 (Image Brightness) 예제...

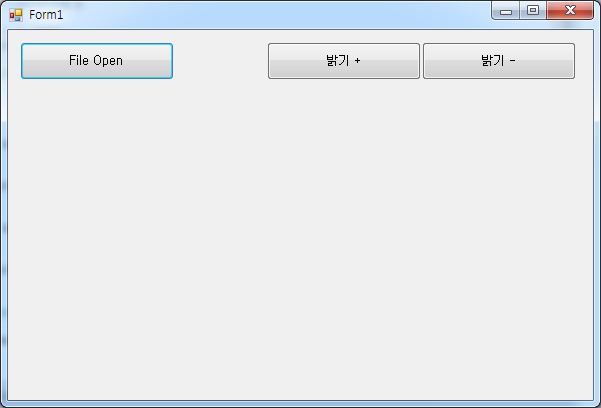

Main



- 사용한 컨트롤 : Button 3개, PictureBox 1개

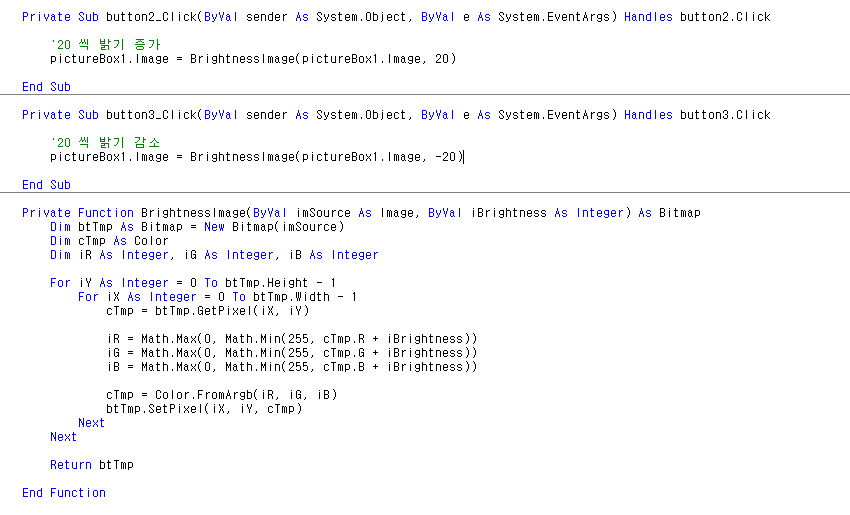

전체 소스 코드

Form1.vb



Public Class Form1

    Private Sub button1_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles button1.Click
        Dim ofd As OpenFileDialog = New OpenFileDialog()

        ofd.Filter = "JPG Files(*.jpg) | *.jpg"
        If ofd.ShowDialog() = Windows.Forms.DialogResult.OK Then

            pictureBox1.Image = New Bitmap(ofd.FileName)
        End If

    End Sub

    Private Sub button2_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles button2.Click

        '20 씩 밝기 증가
        pictureBox1.Image = BrightnessImage(pictureBox1.Image, 20)

    End Sub

    Private Sub button3_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles button3.Click

        '20 씩 밝기 감소
        pictureBox1.Image = BrightnessImage(pictureBox1.Image, -20)

    End Sub

    Private Function BrightnessImage(ByVal imSource As Image, ByVal iBrightness As Integer) As Bitmap
        Dim btTmp As Bitmap = New Bitmap(imSource)
        Dim cTmp As Color
        Dim iR As Integer, iG As Integer, iB As Integer

        For iY As Integer = 0 To btTmp.Height - 1
            For iX As Integer = 0 To btTmp.Width - 1
                cTmp = btTmp.GetPixel(iX, iY)

                iR = Math.Max(0, Math.Min(255, cTmp.R + iBrightness))
                iG = Math.Max(0, Math.Min(255, cTmp.G + iBrightness))
                iB = Math.Max(0, Math.Min(255, cTmp.B + iBrightness))

                cTmp = Color.FromArgb(iR, iG, iB)
                btTmp.SetPixel(iX, iY, cTmp)
            Next
        Next

        Return btTmp

    End Function


End Class





* 예제 결과

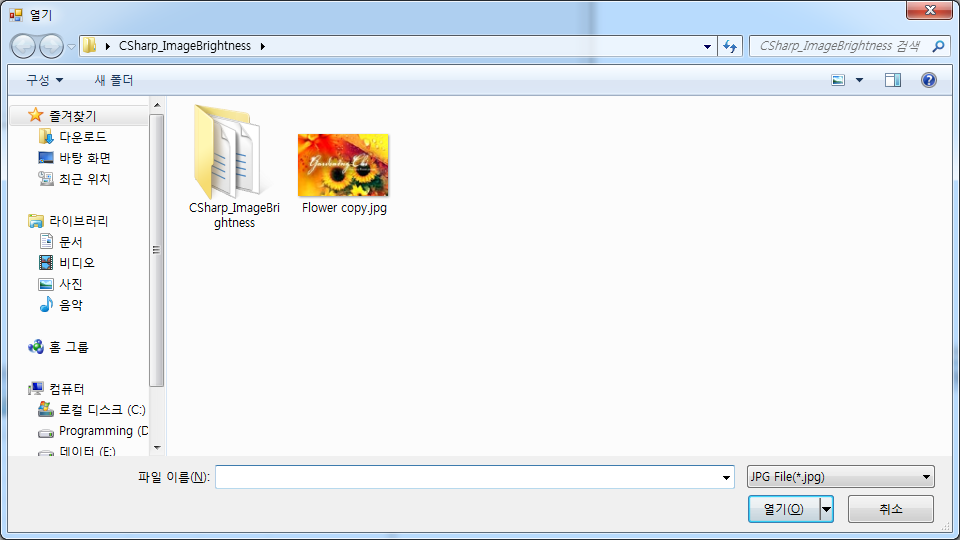

- 이미지 파일 열기...

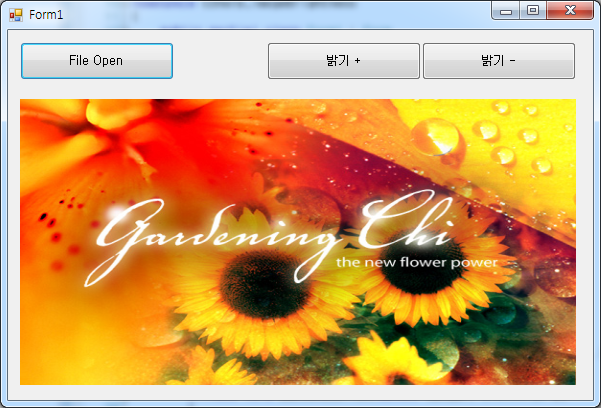

- 밝기 조절 없이 기본 화면

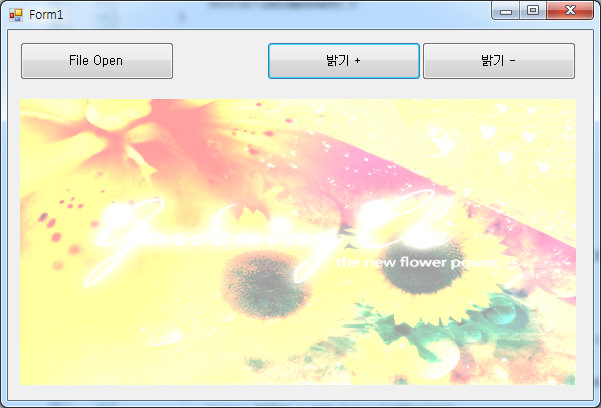

- 밝기 100 정도 된 화면

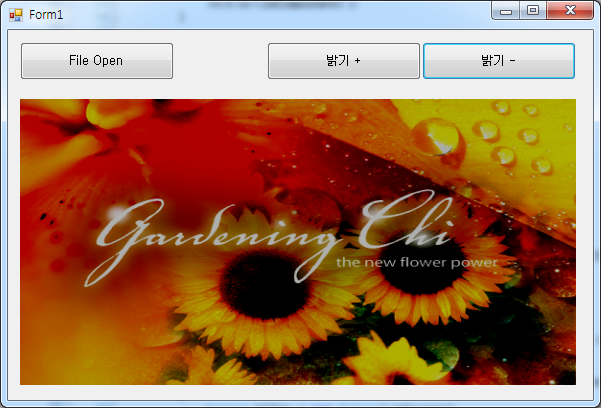

- 밝기 -100 정도 된 화면
